作者:王卓 (合肥工业大学)
邮箱:2020171526@mail.hfut.edu.cn
目录
在经济学中运用因果推断开展研究不可避免会受到混淆变量 (Confounding Variable) 的影响。传统的因果推断方法如双重差分 (DID)、断点回归 (RDD) 等存在一定的局限性,例如解释变量维数过高时的高维陷阱,需要预先设定协变量的函数形式等。
双重机器学习 (Double Machine Learning, DML) 弥补了传统因果估计方法和机器学习方法的缺点。它通过正则化对高维变量选择,正交化解决偏差,样本交叉验证避免过拟合,并对整个估计方法构造置信区间,这在处理经济变量之间的非线性关系等方面具有极大优势。
本文基于微软研究院开发的机器学习因果推断的 Python 第三方库 EconML 和应用案例,展示 DML 方法的使用。
LaLonde (1986) 研究了一项就业培训计划 NSW (The National Supported Work Demonstration),对比该计划对收入的影响在随机实验和非实验数据研究下的差距。NSW 计划旨在通过提供职业培训,帮助美国弱势工人走上长期工作岗位。该培训项目针对的是符合某些条件的男性和女性工人,如正在领取联邦福利金 (AFDC) 或曾经被监禁过。
参加 NSW 项目是自愿的,若一旦选择加入,NSW 就会随机分配他们接受培训 (Treatment group) 或作为对照样本 (Control group),用随机实验评估项目效果。但由于实验成本高,通常情况下,研究人员会使用非实验数据进行项目评估,上述设定也为从非实验数据中捕获因果效应提供了良好环境。
具体步骤为:首先,通过比较 NSW 项目中 Treatment group 和 Control group 来估计项目的效果。虽然工人选择是否参与该计划并不随机,可能与一些个人特征相关,但因为这些工人是随机分配的,所以不用担心任何混杂因素,可以将随机实验的估计值作为真实因果效应的基准。
然后,将 NSW 样本中的 Treatment group 与其他数据集 (非实验数据):the Panel Study of Income Dynamics (PSID) 和 the Current Population Survey (CPS) 中的工人进行比较,重新评估培训的效果。这些非实验数据的工人特征与 NSW 项目的 Control group 存在较大差异,说明从观察数据 (非实验数据) 估计因果关系较为困难。

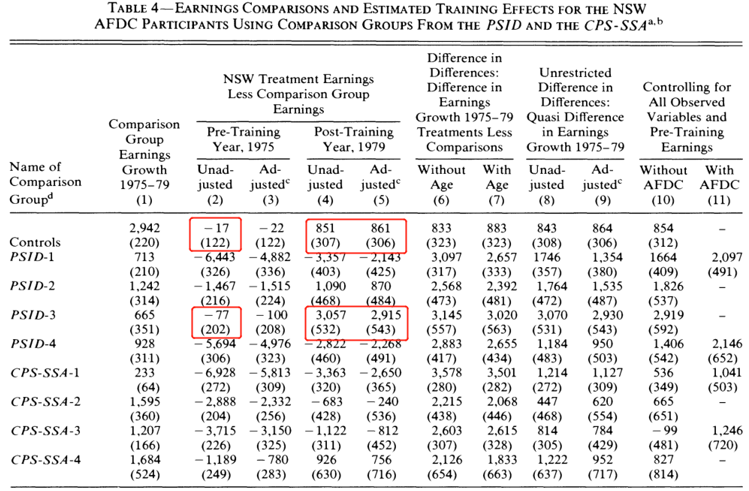

例如,比较 NSW 的 Control group 和 PSID-3 对照组,可以发现这两组人的特征几乎相同 (Table 2 的第 2 列 Controls 和第 5 列的 PSID-3),他们的未经调整和调整的培训前收入也几乎相同 (Table 4 的第 2 列和第 3 列)。在每种情况下,Table 4 第 5 列似乎是处理效应的无偏估计。然而,经过相同的检验,我们发现非实验数据的估计比实验结果多出大约 2100 美元。
事实上,高维的
具体地,我们定义
运用 DML 进行估计主要有 4 个步骤:
本案例用到了以下第三方库,均采用 pip
安装。主要用 statsmodels
进行论文原始方法的回归,用 econml
和 sckit-learn
实现 DML 。
$pip install econml
$pip install pandas
$pip install numpy
$pip install statsmodels
$pip install seaborn
$pip install sckit-learn
$pip install lightgbm
$pip install tqdm
$pip install matplotlib
首先读入数据,并大致查看数据的内容。第一个读取的数据集 female_data 为 NSW 女性实验数据,male_data 为 NSW 男性实验数据。其中,female_data 包含了女性 PSID 数据,男性的 PSID 和 CPS 数据进行了额外读取。
# 导入数据处理pandas库
import pandas as pd
# 若使用Jypter,设置显示所有输出
from IPython.core.interactiveshell import InteractiveShell
InteractiveShell.ast_node_interactivity = 'all'
# 读入数据
female_data = pd.read_csv('https://msalicedatapublic.blob.core.windows.net/datasets/Lalonde/calonico_smith_all.csv')
male_data = pd.read_csv('https://msalicedatapublic.blob.core.windows.net/datasets/Lalonde/smith_todd.csv')
male_cps1 = pd.read_csv('https://msalicedatapublic.blob.core.windows.net/datasets/Lalonde/cps_controls.csv')
male_psid1 = pd.read_csv('https://msalicedatapublic.blob.core.windows.net/datasets/Lalonde/psid_controls.csv')
male_cps3 = pd.read_csv('https://msalicedatapublic.blob.core.windows.net/datasets/Lalonde/cps_controls3.csv')
male_psid3 = pd.read_csv('https://msalicedatapublic.blob.core.windows.net/datasets/Lalonde/psid_controls3.csv')
# 展示数据
for df in [female_data,male_data,male_psid1,male_psid3,male_cps1,male_cps3]:
print(df.head(10))
下图展示的为 female_data 数据集前 10 行的部分内容:
其中,核心变量定义如下表所示:
变量名称 | 数据形式 | 变量含义 |
---|---|---|
treated | 布尔型 | 是否正在参与 NSW 工作培训计划 |
age | 整数型 | 年龄 |
educ | 整数型 | 受教育年限 |
nodegree | 布尔型 | 是否无高中学历 |
black | 布尔型 | 是否黑人 |
hisp | 布尔型 | 是否西班牙人 |
married | 布尔型 | 是否结婚 |
haschild | 布尔型 | 是否有孩子 (仅针对女性) |
nchildren75 | 整数型 | 在1975年拥有孩子的个数 (仅针对女性) |
afdc75 | 布尔型 | 在1975年 AFDC 的类别 (仅针对女性) |
re74 | 浮点型 | 在1974年的实际收入 |
re75 | 浮点型 | 在1975年的实际收入 (before treament) |
re78 | 浮点型 | 在1978年的实际收入 (针对男性的 after treament) |
re79 | 浮点型 | 在1979年的实际收入 (针对女性的 after treament) |
对男性和女性数据的官方描述性统计如下方表格所示:
变量名称 | treatment | control | cps1 | cps3 | psid1 | psid3 |
---|---|---|---|---|---|---|
age | 24.62 (6.69) | 24.45 (6.59) | 33.23 (11.05) | 28.03 (10.79) | 34.85 (10.44) | 38.26 (12.89) |
educ | 10.38 (1.82) | 10.19 (1.62) | 12.03 (2.87) | 10.24 (2.86) | 12.12 (3.08) | 10.30 (3.18) |
nodegree | 0.73 (0.44) | 0.81 (0.39) | 0.30 (0.46) | 0.60 (0.49) | 0.31 (0.46) | 0.51 (0.50) |
black | 0.80 (0.40) | 0.80 (0.40) | 0.07 (0.26) | 0.20 (0.40) | 0.25 (0.43) | 0.45 (0.50) |
hisp | 0.09 (0.29) | 0.11 (0.32) | 0.07 (0.26) | 0.14 (0.35) | 0.03 (0.18) | 0.12 (0.32) |
married | 0.17 (0.37) | 0.16 (0.36) | 0.71 (0.45) | 0.51 (0.50) | 0.87 (0.34) | 0.70 (0.46) |
re74 | 3571 (5773) | 3672 (6522) | 14017 (9570) | 5619 (6789) | 19429 (13407) | 5567 (7255) |
re75 | 3066 (4875) | 3026 (5201) | 13651 (9270) | 2466 (3292) | 19063 (13597) | 2611 (5572) |
re78 | 5976 (6924) | 5090 (5718) | 14847 (9647) | 6984 (7294) | 21553 (15555) | 5279 (7762) |
N | 297 | 425 | 15992 | 429 | 2490 | 128 |
变量名称 | treatment | control | psid1 | psid3 |
---|---|---|---|---|
age | 33.76 (7.39) | 33.74 (7.15) | 37.07 (10.57) | 34.54 (9.34) |
educ | 10.29 (1.93) | 10.26 (2.03) | 11.30 (2.77) | 10.49 (2.13) |
nodegree | 0.70 (0.46) | 0.68 (0.47) | 0.45 (0.50) | 0.59 (0.49) |
black | 0.84 (0.37) | 0.82 (0.39) | 0.65 (0.48) | 0.86 (0.35) |
hisp | 0.11 (0.32) | 0.13 (0.33) | 0.02 (0.12) | 0.02 (0.15) |
married | 0.02 (0.15) | 0.04 (0.19) | 0.02 (0.14) | 0.01 (0.10) |
haschild | 0.97 (0.16) | 0.98 (0.14) | 0.67 (0.47) | 0.97 (0.16) |
nchildren75 | 2.18 (1.29) | 2.23 (1.34) | 1.71 (1.78) | 2.97 (1.79) |
afdc75 | 1.00 (0.00) | 1.00 (0.00) | 0.28 (0.45) | 1.00 (0.00) |
re74 | 913 (2149) | 962 (2376) | 7509 (7296) | 2726 (4414) |
re75 | 861 (2004) | 879 (2195) | 7510 (7541) | 2211 (3568) |
re79 | 4665 (5554) | 3833 (5039) | 8827 (8762) | 4623 (6921) |
N | 601 | 585 | 648 | 182 |
对读入的数据进行初步处理,主要是进行分割数据集的操作。
## female
female_data["haschild"]=(female_data["nchildren75"]>0)*1
female_data = female_data[pd.notnull(female_data.re75) & pd.notnull(female_data.re79)]
female_treatment = female_data[female_data.treated==1.].copy()
female_control = female_data[female_data.treated==0.].copy()
female_psid1 = female_data[female_data['psid1']==1].copy()
female_psid2 = female_data[female_data['psid2']==1].copy()
### 处理数据
female_psid1.loc[:, 'treated'] = 0
female_psid2.loc[:, 'treated'] = 0
## male
male_treatment = male_data[male_data.treated==1.].copy()
male_control = male_data[male_data.treated==0.].copy()
### 处理数据 (统一名称)
for df in [male_psid1,male_psid3,male_cps1,male_cps3]:
df.rename(columns={'treat':'treated', 'education':'educ', 'hispanic':'hisp'}, inplace=True)
对所有变量进行整合,方便后续模型处理和图像展示。
# outcome
outcome_name_male="re78"
outcome_name_female="re79"
# ols controls
basic_ols_columns = ['treated', 'age', 'age_2', 'educ', 'nodegree', 'black', 'hisp']
complete_ols_columns_male = basic_ols_columns+["married","re75","re75_dummy", \
"re74","re74_dummy","re_diff_pre"]
complete_ols_columns_female=basic_ols_columns+["married","re75","re75_dummy", \
"re74","re74_dummy", "re_diff_pre","afdc75","nchildren75","haschild"]
# econml controls (exclude treatment)
econml_controls_male= ['age', 'age_2', 'educ', 're75','re74','re_diff_pre','nodegree', \
'black', 'hisp', 'married', 're75_dummy','re74_dummy']
econml_controls_female= ['age', 'age_2', 'educ','nchildren75', 're75','re74','re_diff_pre', \
'nodegree', 'black', 'hisp', 'married','re75_dummy','re74_dummy','afdc75','haschild']
def preprocessing(df,outcome_name,column_names):
# add indicator of zero earnings
df["re74_dummy"]=(df["re74"]>0)*1
df["re75_dummy"]=(df["re75"]>0)*1
# get growth of pre training earning
df["re_diff_pre"]=df["re75"]-df["re74"]
# add age square
df["age_2"]=df["age"]**2
# select columns
df=df[column_names+[outcome_name]]
return df
# preprocessing data
male_control, male_treatment, male_psid1, male_psid3, male_cps1, male_cps3 \
= [preprocessing(df,outcome_name_male,complete_ols_columns_male) \
for df in (male_control, male_treatment, male_psid1, \
male_psid3, male_cps1, male_cps3)]
female_control, female_treatment, female_psid1, female_psid2 \
=[preprocessing(df,outcome_name_female,complete_ols_columns_female)\
for df in (female_control, female_treatment, female_psid1, female_psid2)]
接下来,我们用 statsmodels
库构建 OLS 模型,对论文原始结果进行复现。
import statsmodels.api as sm
def ols_reg_wrapper(reg_data, x_columns, y_column, print_summary=False):
"""
输入:
reg_data:整个数据集
x_column:解释变量列
y_column:被解释变量
输出:
effect:treated系数
se:标准误
lb、ub:置信区间上下界
"""
X = reg_data[x_columns].values
X = pd.DataFrame(sm.add_constant(X,has_constant='add'),columns=["intercept"]+x_columns)
Y = reg_data[y_column]
model = sm.OLS(Y, X, hasconst=True)
results = model.fit()
# save results for summary table
effect = int(round(results.params['treated']))
se = int(round(results.bse['treated']))
lb=int(round(results.conf_int().loc["treated"][0]))
ub=int(round(results.conf_int().loc["treated"][1]))
if print_summary:
print(results.summary())
return effect, se, lb, ub
这部分,我们首先定义两个函数,first_stage_reg 和 first_stage_clf,分别表示了 DML 估计步骤的 Step 2 和 Step 3。每个步骤的机器学习模型,在 Lasso (拉索)、Random Forest (随机森林)、LigthGBM (一种梯度提升决策树) 等模型中,通过 GridSearchCVList 选择最优模型和参数。
from sklearn.linear_model import LogisticRegressionCV, \
LinearRegression,LogisticRegression,Lasso,LassoCV
from sklearn.ensemble import RandomForestClassifier, \
RandomForestRegressor,GradientBoostingClassifier
import lightgbm as lgb
from sklearn.preprocessing import StandardScaler
from econml.sklearn_extensions.model_selection import GridSearchCVList
def first_stage_reg(X, y, *, automl=True):
if automl:
model = GridSearchCVList([LassoCV(),
RandomForestRegressor(n_estimators=100),
lgb.LGBMRegressor()],
param_grid_list=[{},
{'max_depth': [5,10,20],'min_samples_leaf': [5, 10]},
{'learning_rate': [0.02,0.05,0.08], 'max_depth': [3, 5]}],
cv=3,
scoring='neg_mean_squared_error')
best_est = model.fit(X, y).best_estimator_
if isinstance(best_est, LassoCV):
return Lasso(alpha=best_est.alpha_)
return best_est
else:
model = LassoCV(cv=5).fit(X, y)
return Lasso(alpha=model.alpha_)
def first_stage_clf(X, y, *, make_regressor=False, automl=True):
if automl:
model = GridSearchCVList([LogisticRegressionCV(max_iter=1000),
RandomForestClassifier(n_estimators=100),
lgb.LGBMClassifier()],
param_grid_list=[{},
{'max_depth': [5,10,20],
'min_samples_leaf': [5, 10]},
{'learning_rate':[0.01,0.05,0.1],
'max_depth': [3,5]}],
cv=3,
scoring='neg_log_loss')
est = model.fit(X, y).best_estimator_
if isinstance(est,LogisticRegressionCV):
return LogisticRegression(C=est.C_[0])
else:
model = LogisticRegressionCV(cv=5, max_iter=1000).fit(X, y)
est = LogisticRegression(C=model.C_[0])
if make_regressor:
return _RegressionWrapper(est)
else:
return est
在选择出最优模型和参数后,我们使用 econml
进行 DML 模型构建。
import numpy as np
from econml.dml import LinearDML
from econml.dr import LinearDRLearner
def econml_homo_model_wrapper(reg_data, control_names,outcome_name, \
model_type,*,cols_to_scale, print_summary=False):
# get variables
X = None # no heterogeneous treatment
W = reg_data[control_names].values
# scale W
scaler = StandardScaler()
W = np.hstack([scaler.fit_transform(W[:, :cols_to_scale]).astype(np.float32), W[:, cols_to_scale:]])
T = reg_data["treated"]
y = reg_data[outcome_name]
# select the best nuisances model out of econml estimator
model_y=first_stage_reg(W, y)
model_t=first_stage_clf(W, T)
if model_type=='dml':
est = LinearDML(model_y=model_y,
model_t=model_t,
discrete_treatment=True, mc_iters=5,cv=5)
elif model_type=='dr':
est = LinearDRLearner(model_regression=model_y,
model_propensity=model_t,
mc_iters=5,cv=5)
else:
raise ValueError('invalid model type %s' % model_type)
try:
est.fit(y, T, X=X, W=W, inference="statsmodels")
except np.linalg.LinAlgError as e:
est.fit(y, T, X=X, W=W, inference="statsmodels")
# Get the final coefficient and intercept summary
if model_type=="dml":
inf=est.intercept__inference()
else:
inf=est.intercept__inference(T=1)
effect=int(round(inf.point_estimate))
se=int(round(inf.stderr))
lb,ub=inf.conf_int(alpha=0.05)
if print_summary:
if model_type=='dml':
print(est.summary(alpha=0.05))
else:
print(est.summary(T=1,alpha=0.05))
return effect, se, int(round(lb)), int(round(ub))
最后,定义函数 get_summ_table 将所有回归的结果进行输出
from tqdm import tqdm
def get_summ_table(dfs,treat_df,*,df_names,basic_ols_controls, \
complete_ols_controls,econml_controls,outcome_name,cols_to_scale):
summ_dic={"control_name":[],"# of obs":[],"earning_growth":[],"OLS":[], \
"OLS full controls":[],"DML full controls":[]}
summ_dic1={"control_name":[],"method":[],"point_estimate":[],"stderr":[],\
"lower_bound":[],"upper_bound":[]}
for df, name in tqdm(zip(dfs, df_names)):
summ_dic["control_name"].append(name)
summ_dic["# of obs"].append(df.shape[0])
summ_dic1["control_name"]+=[name]*3
# get table 5 col 1
growth=int(np.round((df[outcome_name]-df["re75"]).mean(),0))
summ_dic["earning_growth"].append(growth)
# get table 5 col 5
summ_dic1["method"].append("OLS")
df_all=pd.concat([treat_df,df],axis=0,ignore_index=True)
effect,se,lb,ub=ols_reg_wrapper(df_all,basic_ols_controls,outcome_name,print_summary=False)
summ_dic["OLS"].append([effect,se])
summ_dic1["point_estimate"].append(effect)
summ_dic1["stderr"].append(se)
summ_dic1["lower_bound"].append(lb)
summ_dic1["upper_bound"].append(ub)
# get table 5 col 10
summ_dic1["method"].append("OLS full controls")
effect,se,lb,ub=ols_reg_wrapper(df_all,complete_ols_controls,outcome_name,print_summary=False)
summ_dic["OLS full controls"].append([effect,se])
summ_dic1["point_estimate"].append(effect)
summ_dic1["stderr"].append(se)
summ_dic1["lower_bound"].append(lb)
summ_dic1["upper_bound"].append(ub)
# dml
summ_dic1["method"].append("DML full controls")
effect,se,lb,ub=econml_homo_model_wrapper(df_all, econml_controls, \
outcome_name,"dml",cols_to_scale=cols_to_scale, print_summary=False)
summ_dic["DML full controls"].append([effect,se])
summ_dic1["point_estimate"].append(effect)
summ_dic1["stderr"].append(se)
summ_dic1["lower_bound"].append(lb)
summ_dic1["upper_bound"].append(ub)
return summ_dic,summ_dic1
这里,我们将上述模型结果输出,并对比 Lalonde (1986) 文中 ATE 的估计。
control_dfs_male=[male_control,male_psid1,male_psid3,male_cps1,male_cps3]
df_names_male=["exp controls","psid1","psid3","cps1","cps3"]
summ_male,summplot_male=get_summ_table(control_dfs_male,male_treatment,df_names=df_names_male,
basic_ols_controls=basic_ols_columns,
complete_ols_controls=complete_ols_columns_male,
econml_controls=econml_controls_male,
outcome_name=outcome_name_male,cols_to_scale=6
)
summ_male_df=pd.DataFrame(summ_male)
summ_male_df
control_name | N | earning_growth | OLS | OLS full controls | DML full controls | |
---|---|---|---|---|---|---|
0 | exp controls | 425 | 2063 | [798, 472] | [817, 469] | [851, 487] |
1 | psid1 | 2490 | 2491 | [-8067, 990] | [-1827, 825] | [-1966, 697] |
2 | psid3 | 128 | 2669 | [-509, 967] | [-239, 1029] | [133, 976] |
3 | cps1 | 15992 | 1196 | [-4416, 577] | [-867, 445] | [-784, 542] |
4 | cps3 | 429 | 4518 | [-1, 681] | [210, 683] | [480, 609] |

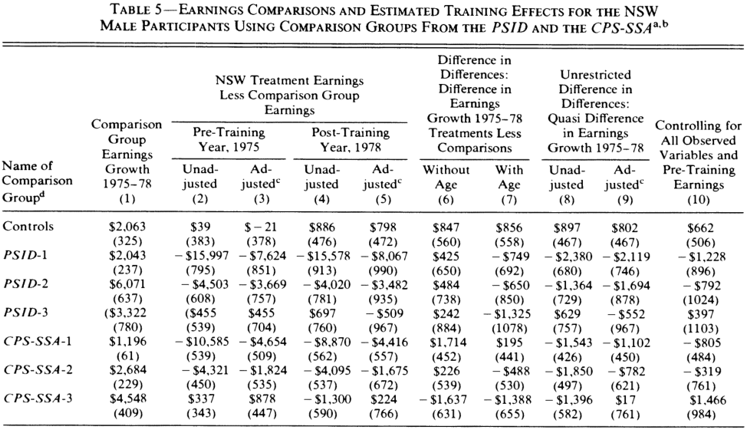

其中,中括号中的数值分别代表点估计和标准误。原文中的估计结果如下图所示:

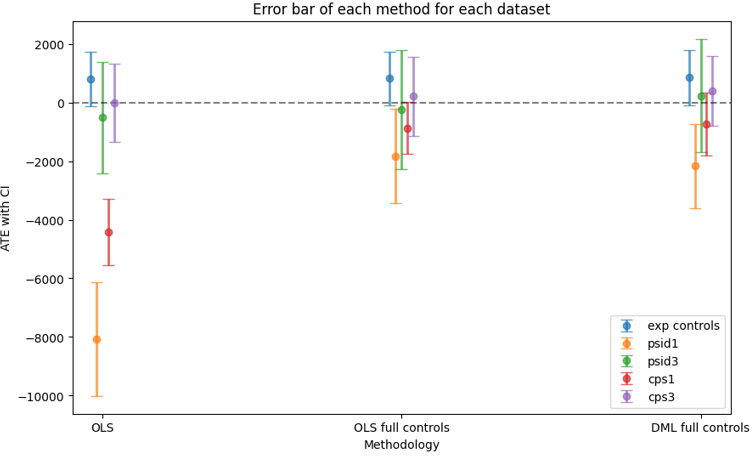

然后,绘制每种估计方法的误差条图。
import matplotlib.pyplot as plt
from matplotlib.transforms import ScaledTranslation
%matplotlib inline
def plot_errorbar(df,df_names):
fig, ax = plt.subplots(figsize=(10,6))
for ind,control_name in enumerate(df_names):
sub_df=df[df["control_name"]==control_name]
method_name=sub_df["method"].values
point=sub_df["point_estimate"].values
yerr=np.zeros((2,point.shape[0]))
yerr[0,:]=point-sub_df["lower_bound"].values
yerr[1,:]=sub_df["upper_bound"].values-point
trans = ax.transData + ScaledTranslation((-10+ind*5)/72, 0, fig.dpi_scale_trans)
plt.errorbar(method_name,point,yerr,fmt="o",capsize=5, \
elinewidth=2,label=control_name,alpha=0.7,transform=trans)
plt.axhline(y=0, color='black', linestyle='--',alpha=0.5)
plt.legend()
plt.xlabel("Methodology")
plt.ylabel("ATE with CI")
plt.title("Error bar of each method for each dataset")
plt.show()
summplot_male_df=pd.DataFrame(summplot_male)
plot_errorbar(summplot_male_df,df_names_male)

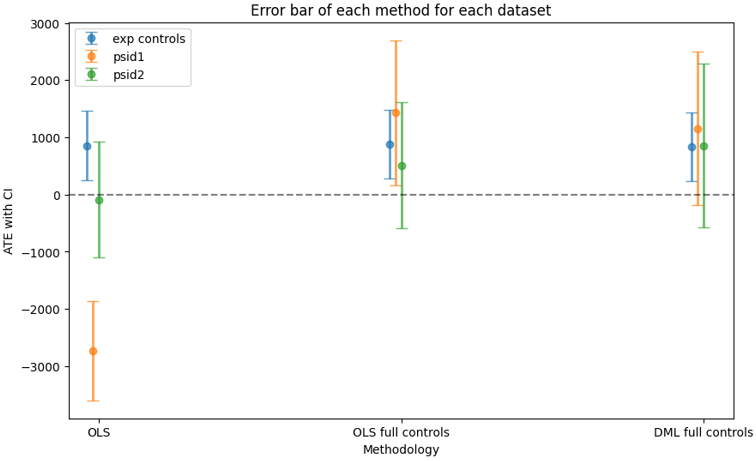

同理,女性处理效应对比和误差条代码如下所示:
control_dfs_female=[female_control,female_psid1,female_psid2]
df_names_female=["exp controls","psid1","psid2"]
summ_female,summplot_female=get_summ_table(control_dfs_female,female_treatment,df_names=df_names_female,
basic_ols_controls=basic_ols_columns,
complete_ols_controls=complete_ols_columns_female,
econml_controls=econml_controls_female,
outcome_name=outcome_name_female,cols_to_scale=7
)
summ_female_df=pd.DataFrame(summ_female)
summ_female_df
control_name | N | earning_growth | OLS | OLS full controls | DML full controls | |
---|---|---|---|---|---|---|
0 | exp controls | 585 | 2954 | [858, 307] | [880, 307] | [830, 307] |
1 | psid1 | 648 | 1316 | [-2730, 441] | [1068, 529] | [1012, 682] |
2 | psid2 | 182 | 2412 | [-90, 514] | [510, 560] | [790, 711] |
原文中的估计结果:
根据上述结果可以发现,在一些样本上,如 PSID1、CPS1,双重机器学习 DML 比论文中的传统非实验估计具有更好的表现。以上仅为 EconML 实现 DML 的部分操作,更多细节和用法,可以登录 官网 查看。
Note:产生如下推文列表的 Stata 命令为:
lianxh 机器学习, m
安装最新版lianxh
命令:
ssc install lianxh, replace
免费公开课
最新课程-直播课
专题 | 嘉宾 | 直播/回看视频 |
---|---|---|
⭐ 最新专题 | 文本分析、机器学习、效率专题、生存分析等 | |
研究设计 | 连玉君 | 我的特斯拉-实证研究设计,-幻灯片- |
面板模型 | 连玉君 | 动态面板模型,-幻灯片- |
面板模型 | 连玉君 | 直击面板数据模型 [免费公开课,2小时] |
⛳ 课程主页
⛳ 课程主页
关于我们
课程, 直播, 视频, 客服, 模型设定, 研究设计, stata, plus, 绘图, 编程, 面板, 论文重现, 可视化, RDD, DID, PSM, 合成控制法
等
连享会小程序:扫一扫,看推文,看视频……
扫码加入连享会微信群,提问交流更方便
✏ 连享会-常见问题解答:
✨ https://gitee.com/lianxh/Course/wikis
New!
lianxh
和songbl
命令发布了:
随时搜索连享会推文、Stata 资源,安装命令如下:
. ssc install lianxh
使用详情参见帮助文件 (有惊喜):
. help lianxh
